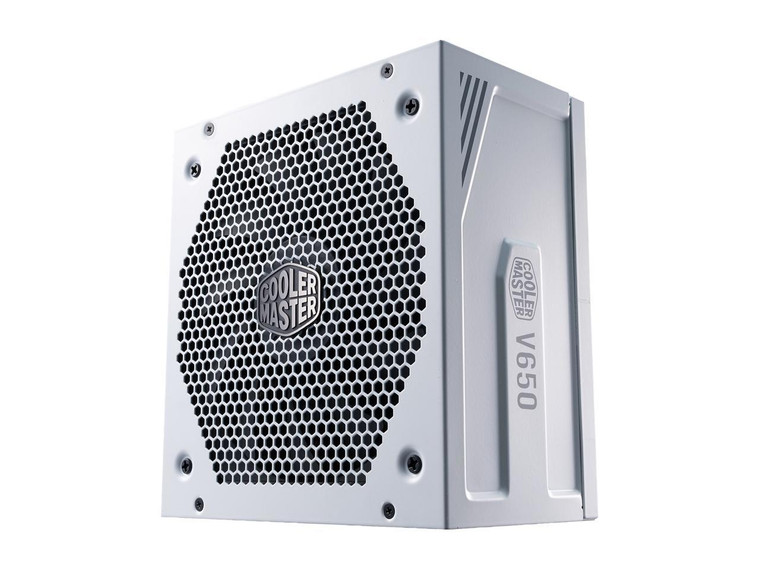

Cooler Master V650 Gold V2 White Edition Full Modular 650W 80+ Gold Power Supply
Cooler Master
$96.99
(No reviews yet)
Write a Review
Cooler Master
Cooler Master V650 Gold V2 White Edition Full Modular 650W 80+ Gold Power Supply
Cooler Master V650 Gold V2 White Edition Full Modular 650W 80+ Gold Power Supply
Brand: Cooler Master
Series: V650 Gold V2 White Edition
Model: MPY-650V-AGBAG-US
Color: White
Type: ATX 12V Ver. 2.52
Maximum Power: 650W
Fans: 1 x 135mm FDB fan
PFC: Active
Main Connector: 20+4Pin
+12V Rails: Single
PCI-Express Connector: 4 x 6+2-Pin
SATA Power Connector: 8
Modular: Full Modular
Power Good Signal: 100-500ms
Hold-up Time: 17ms min.
Efficiency: 90% @ Typical Load
Energy-Efficient: 80 PLUS GOLD Certified
Protection: OVP / OPP / SCP / OCP / UVP / OTP
Input Voltage: 100 - 240 V
Input Frequency Range: 50/60 Hz
Input Current: 9 - 4.5 A
Output: +3.3V@20A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@3A
MTBF: >100,000 Hours
Approvals: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Dimensions: 3.39" x 5.91" x 6.30"
Max PSU Length: 160 mm
Weight: 4.32 lbs.
Features
80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.
Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.
Semi-Fanless Mode with Hybrid Switch: The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware-based hybrid switch.
Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
Power Supply Only No Cables Included.
Refurbished and Tested.
May show slight signs of use (scuffs, scrapes,scratches, dings, dents, paint missing, marks, or dust).
Not in original packaging.
Comes sealed in a plain box.
Stock Images Used.
